Description
## SYNOPSIS
This program supports four different sorting methods: **insertion sort**, **merge sort**, **quick sort** and **heap sort**. All of the source code files have been already given except sort_tool.cpp. I only complete the different sorting functions of class SortTool in sort_tool.cpp
“`
mysort -[IS|MS|QS|HS]
“`
## DIRECTORY
“`
bin/ executable binary
doc/ reports
inputs/ input data (unsorted)
outputs/ output result (sorted)
lib/ library
src/ source C++ codes
utility/ checker
“`
## HOW TO COMPILE:
Then compile the demo, simply follow the following steps
“`sh
make #or make all
#g++ -c -O2 src/sort_tool.cpp -o sort_tool_opt.o
#g++ -c src/main.cpp -Ilib -o main_opt.o
#g++ -c lib/tm_usage.cpp
#ar rcv lib/libtm_usage.a tm_usage.o
#a – tm_usage.o
#g++ -O2 sort_tool_opt.o main_opt.o -ltm_usage -Llib -o bin/NTU_sort
#building project
“`
“`sh
make dbg
#g++ -c -g -D_DEBUG_ON_ src/sort_tool.cpp -o sort_tool_dbg.o
#g++ -c src/main.cpp -Ilib -o main_dbg.o
#g++ -c lib/tm_usage.cpp
#ar rcv lib/libtm_usage.a tm_usage.o
#a – tm_usage.o
#g++ -g -D_DEBUG_ON_ sort_tool_dbg.o main_dbg.o -ltm_usage -Llib -o bin/NTU_sort_dbg
#building debugger
“`
## HOW TO RUN & VERIFY:
Run the sorter
“`
./bin/NTU_sort -[IS|MS|QS|HS]
“`
Inputs and outputs
“`
*.[case1|case2|case3].in, where
case1 represents test case in random order (average case)
case2 is test case in increasing order (best case)
case3 is test case in reverse order (worst case)
“`
## EXPERIMENT
Check the answers correctness, and get memory usage and cpu time.
“`
bash src/insertionSort.sh > outputs/insertionSort.log
bash src/mergeSort.sh > outputs/mergeSort.log
bash src/quickSort.sh > outputs/quickSort.log
bash src/heapSort.sh > outputs/heapSort.log
“`

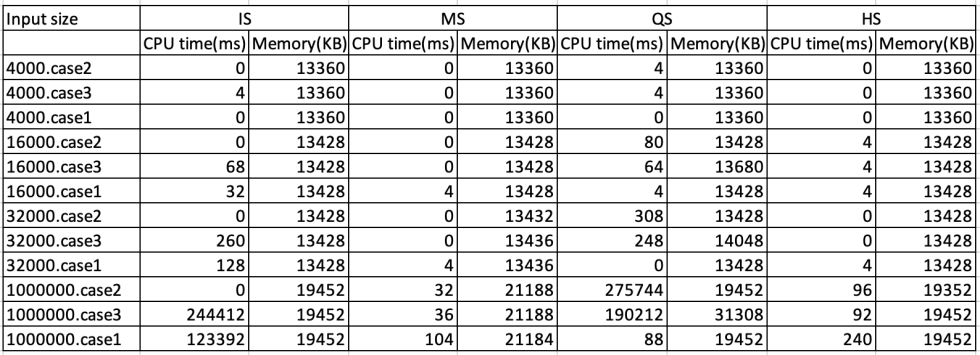

Comparison table

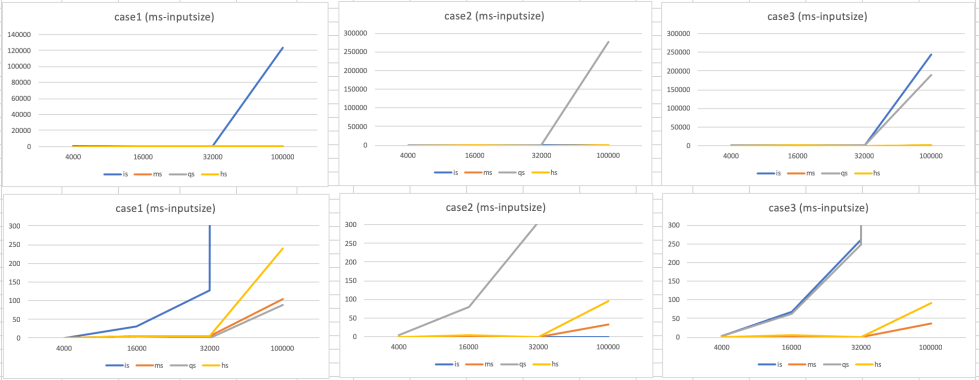

Comparison chart, draw figures to show the growth of running time as a function of input size
## TESTING

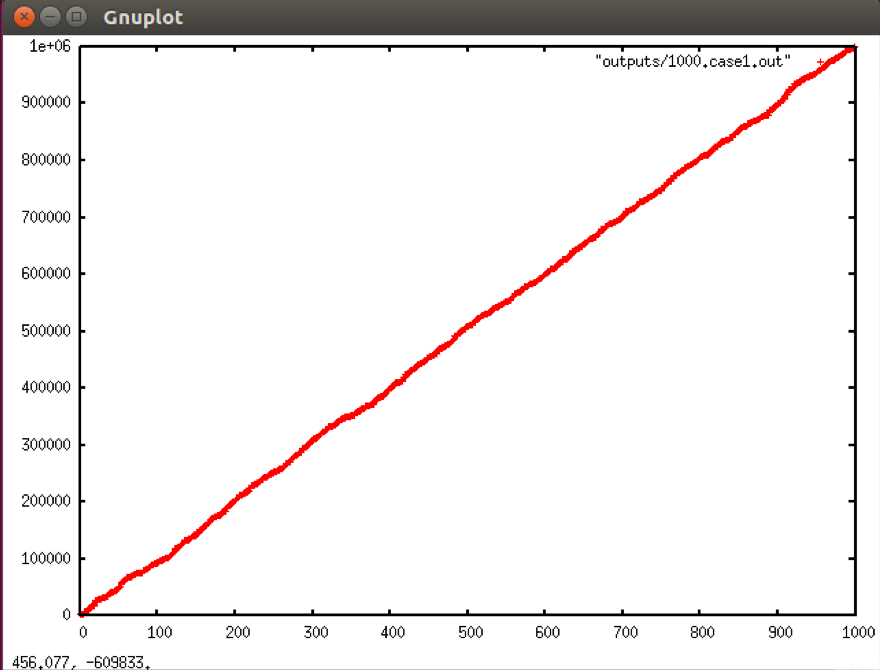

Visualize results
“`
sudo apt install gnuplot-x11
gnuplot
gnuplot> plot “outputs/1000.case1.out”
“`

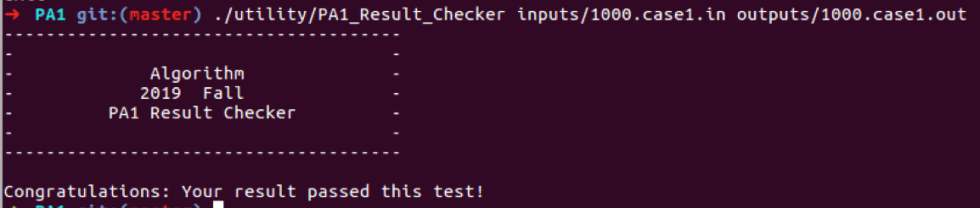

Verify the output by given exeacutable file
“`
./utility/PA1_Result_Checker
“`
SelfCheck of homework upload
“`
mkdir r07921001_pa1
cp -r {src,lib,bin,doc,makefile,README.md} ./r07921001_pa1
tar zcvf r07921001_pa1.tgz r07921001_pa1
./utility/checkSubmitPA1.sh r07921001_pa1.tgz
“`
## OTHER NOTICE:
If your code run well for small test case but get “Segmentation fault” for the large test case(-IS 1000000.case3), you can use the the following commend to increase the stack size to 256MB: (NOTE: It is terminal depandent setting, turning off or new another one would not be applied)
“`sh
ulimit -a # To list all constraints
ulimit -s 262144 # To change stack size to 256mb
“`
